| M-11
Field Strip |
This is page 4 of the M-11 Field
Strip tutorial. If you would like to go to the previous
page click on the link below.
Click
here to return to previous page of this tutorial
|
| Steps
10 through 12 |
| Step
10 |
| |

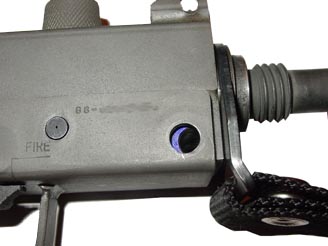

| Once
you have the lower and upper receivers interlocked
together take a look at the “take down pin”
hole. If
they are not perfectly aligned it will look similar
to the one pictured. Notice the purple area, the
upper receiver is to far forward for the take
down pin housing to be inserted.
|
|
|

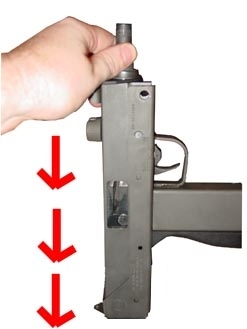

To
correct this, hold onto the upper receiver and gently
tap the rear of the gun on the floor until the holes
are lined up straight enough to insert the “take
down pin”. |
This is what it should look like when you have
the upper and lower receivers lined up correctly.
|
|
|
| Step
11 |
| |
|
|

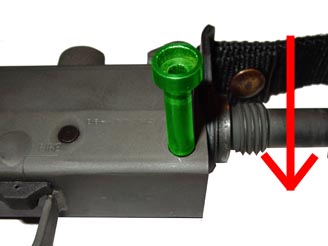

| Once
the upper and lowers are aligned you can now drop in the
“take down pin” housing, colored in green.
You can insert it from either direction. I prefer
to do it on the same side as the ejection port.
When you get
the housing fully seated against the receiver (marked
purple) you are ready to insert the latch pin.
|
| Step
12 |
| |
| Now take the “latch
pin”, marked in green, and insert it through
the end of “take down pin” housing,
marked in purple, that does not stick out side the
receiver. |
|
| Push the “latch
pin” all the way through until it locks into
place. |
|
|
If you did it correctly
you should see that the “latch pin”
has latched onto the “take down pin”
housing. |
|
And
that’s it! Pretty simple huh. I hope this tutorial
was easy enough to follow. |
|
|
